FLEXIBLE ENDOSCOPY
Flexible Sensor Cystoscope
MAMBA Vision

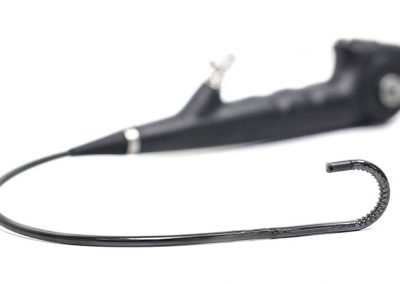

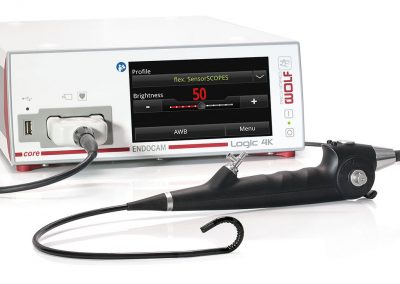

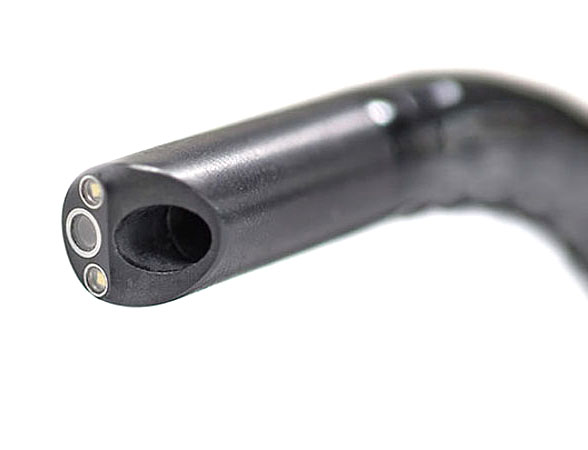

The most recent product, MAMBA vision, completes the Richard Wolf product portfolio of flexible sensor endoscopes that are used in the bladder. MAMBA vision has various functions that offer the endourologist precise control and overview during the procedure: MAMBA vision has 210° articulation on both sides and a large irrigation channel of 7.5 Fr. for maximum irrigation capacity. Two distally installed LEDs ensure homogeneous illumination of the bladder without over-illumination and shadowing.
- Large 7.5 Fr. working and irrigation channel

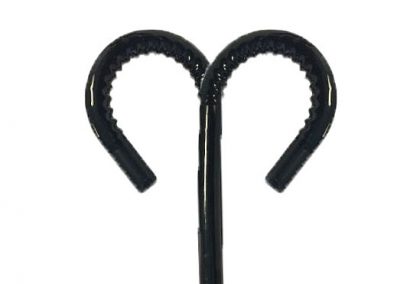

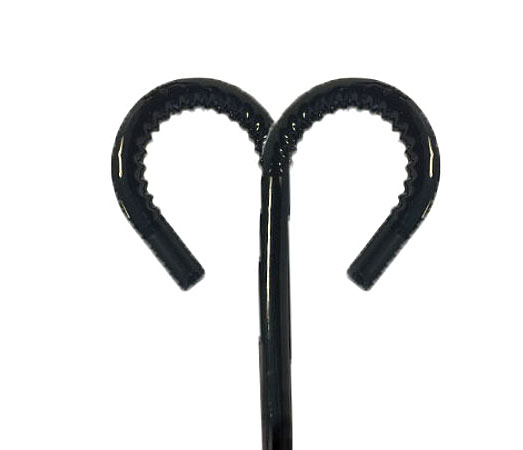

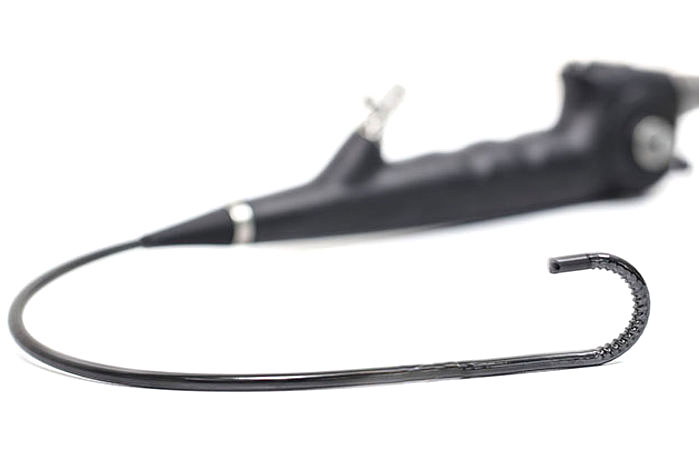

- 210° articulation upward and downward enables a view of all areas of the bladder

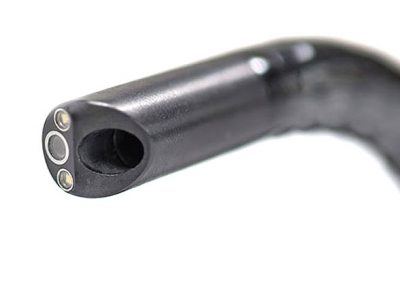

- Atraumatic, 11.5 Fr. beveled distal tip
- Special Imaging Mode (SIM) compatible
- Always good visualization, even at maximum articulation, since the position of the working and irrigation channels are at 3 o’clock in the endoscopic image
- Ergonomic handle and axial cable exit for easy handl
The all-rounder

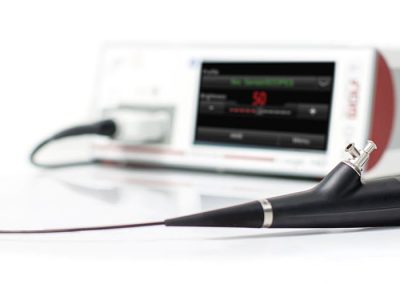

BOA Vision
Due to its super-slim design with a sheath diameter of 8.7 Fr. and only 6.6 Fr. at the distal tip, the BOA vision 1-channel sensor ureterorenoscope is used with particular benefit for complicated and slender anatomies. Equipped with a 3.6 Fr. working irrigation channel and 270° articulation on both sides, this ureteroscope can even be introduced via an access sheath of 9.5 Fr. Thus BOA vision is particularly suitable for pediatric examination.
- Suitable for access sheaths ≥ 9.5 Fr.
- 3.6 Fr. working and irrigation channel
- Articulation: 270° upward / 270° downward
- Atraumatic, 6.6 Fr. beveled distal tip
- Special Imaging Mode (SIM) compatible
- Ergonomic handle and axial cable exit for easy handling
The specialist for stone therapy

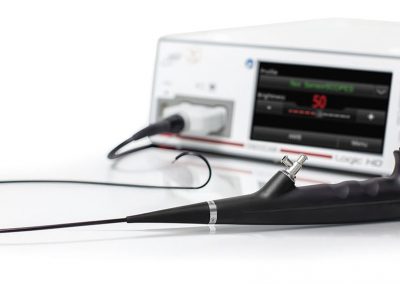

COBRA Vision

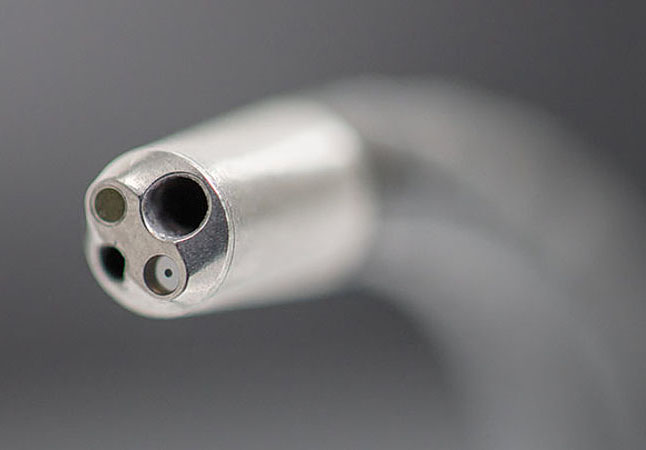

COBRA vision, as the first and only sensor ureterorenoscope with two working channels and a laser shifter, it is particularly suitable for stone therapy via laser, such as the MegaPulse70+. The two working channels allow work without interrupting the work sequence, so that laser lithotripsy and extraction of concretions can be performed in parallel. Through a specially developed laser shifter the laser fiber can first be fixed in place, and then precisely positioned on the stone during treatment.
- The only flexible 2-channel sensor URS on the market
- 3.6 Fr. working and irrigation channel
- Laser channel 2.4 Fr. – for laser fibers to max. 365 µm
- Laser shifter for fixing and positioning the laser fiber during stone treatment

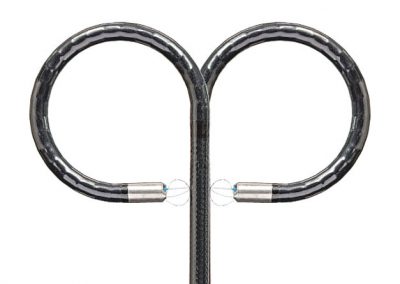

- Articulation: 270° upward / 270° downward
- Atraumatic, 5.2 Fr. beveled distal tip
- Special Imaging Mode (SIM) compatible
- Ergonomic handle and axial cable exit for easy handling
Flexible sensor cystoscope
Vision EF Cytoscope

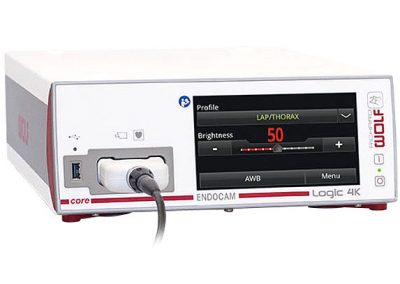

The vision EF cystoscope, particularly when combined with the ENDOCAM Flex HD Controller, is predestined for use in private practices: Via a 7.5 Fr. working channel, irrigation capacity can be maximized during the cystoscopy, and the bladder can be homogeneously illuminated without shadowing and over-illumination, using two distally mounted LEDs. Importantly, the 210° articulation on both sides ensures that all areas of the bladder can be easily examined.
- Large 7.5 Fr. working and irrigation channel
- 210° articulation upward and downward enables a view of all areas of the bladder
- Atraumatic, 11.5 Fr. beveled distal tip
- Always good visualization, even at maximum articulation, since the position of the working and irrigation channels are at 3 o’clock in the endoscopic image
- Ergonomic handle and axial cable exit for easy handling
